WHAT DOES THE SOUND CART DO – AND FOR WHOM?
Smart Sound Cart is built to protect audio equipment for all people in the film, video, audio production industry. No matter if you are a sound mixer or a rental company, our priority is to PROTECT YOUR SOUND TREASURE and YOU!
Our customers are audio engineers who want to enhance not only the process of audio engineering, but also to protect their audio equipment and health, of course.
With Smart Sound Cart they come to the set relaxed and in peace without worrying about heavy load of equipment that they carry.
With Smart Sound Cart they come to the set relaxed and in peace without worrying about heavy load of equipment that they carry.
WHY DO YOU NEED A SMART SOUND CART?
There are a lot of benefits of sound cart that will make your life on the set easier and more comfortable for work.
Also putting your sound equipment in audio box ensures longer life of device exploitation due to fixed connections with patch field (no need for daily plugging-unplugging routine!) and protection from the sun, wind, dust and rain.
Also putting your sound equipment in audio box ensures longer life of device exploitation due to fixed connections with patch field (no need for daily plugging-unplugging routine!) and protection from the sun, wind, dust and rain.
SPEED OF SETUP up for shooting is another major advantage.
You can start recording sound in a matter of minutes due to fact that your gear is already interconnected and safely stored in the Audio Box customized for your recorder and mixer/remote surface. All you need to do is to put your Audio Box on Smart Sound Cart and power it up and you are ready to go!
LIGHTWEIGHT and MODULARITY of our audio carts is another strong point.
SIZE and WEIGHT of Smart Sound Cart does matter! Weight of Sound Smart Cart is only 14kg!
We built Smart Sound Cart so it can fit real train wagon doors, elevators and it is foldable so it can be packed to fit in the trunk of your car.
You can start recording sound in a matter of minutes due to fact that your gear is already interconnected and safely stored in the Audio Box customized for your recorder and mixer/remote surface. All you need to do is to put your Audio Box on Smart Sound Cart and power it up and you are ready to go!
LIGHTWEIGHT and MODULARITY of our audio carts is another strong point.
SIZE and WEIGHT of Smart Sound Cart does matter! Weight of Sound Smart Cart is only 14kg!
We built Smart Sound Cart so it can fit real train wagon doors, elevators and it is foldable so it can be packed to fit in the trunk of your car.
IMPORTANT FEATURES TO CONSIDER WHEN SHOPPING FOR A SOUND CART
We all know how painful can be carrying massive trolley with all gear mounted on it. Here are the most important things to consider before you decide to buy a sound cart:

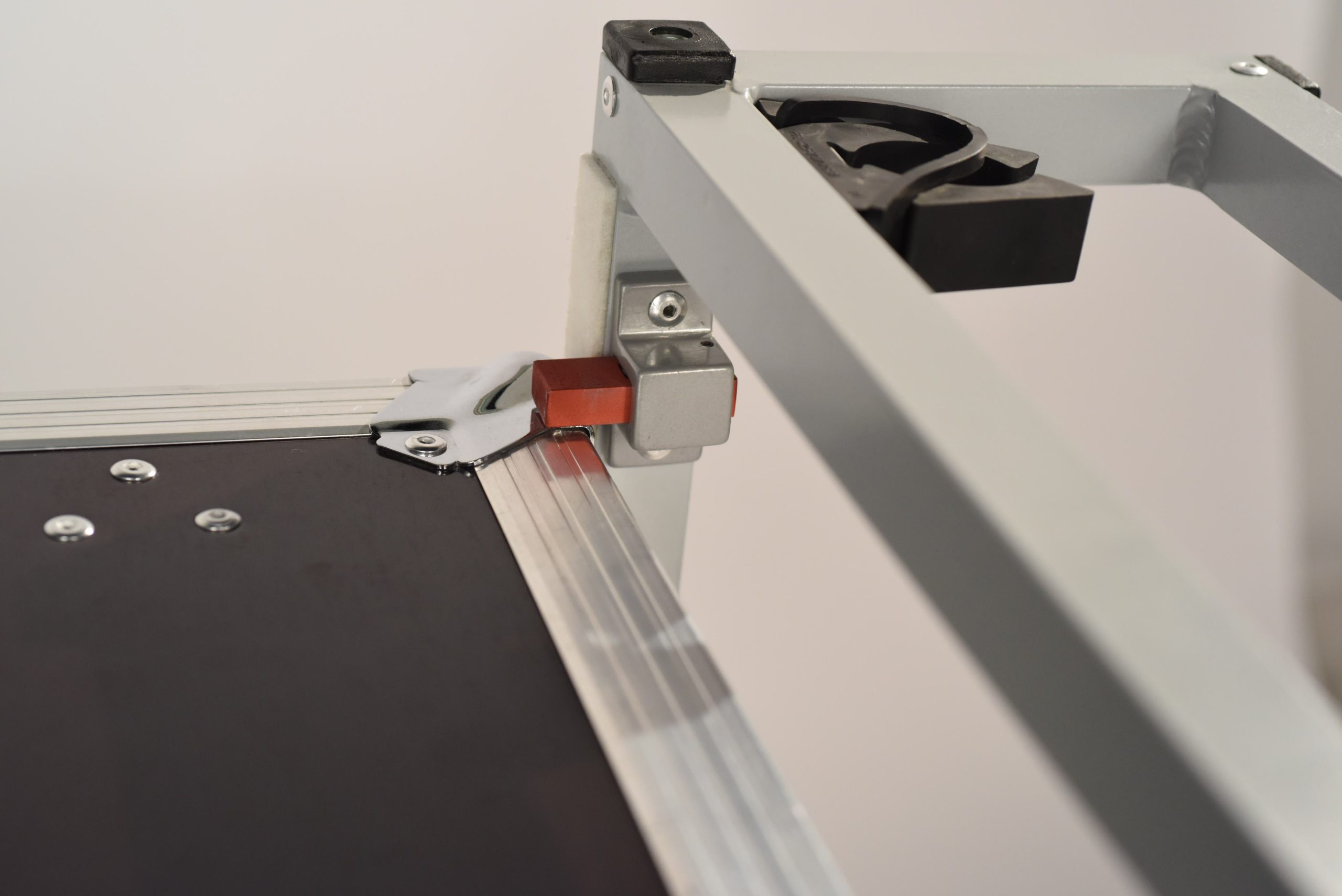

FLEXIBILITY - easy detach Audio Box from Smart Sound Cart

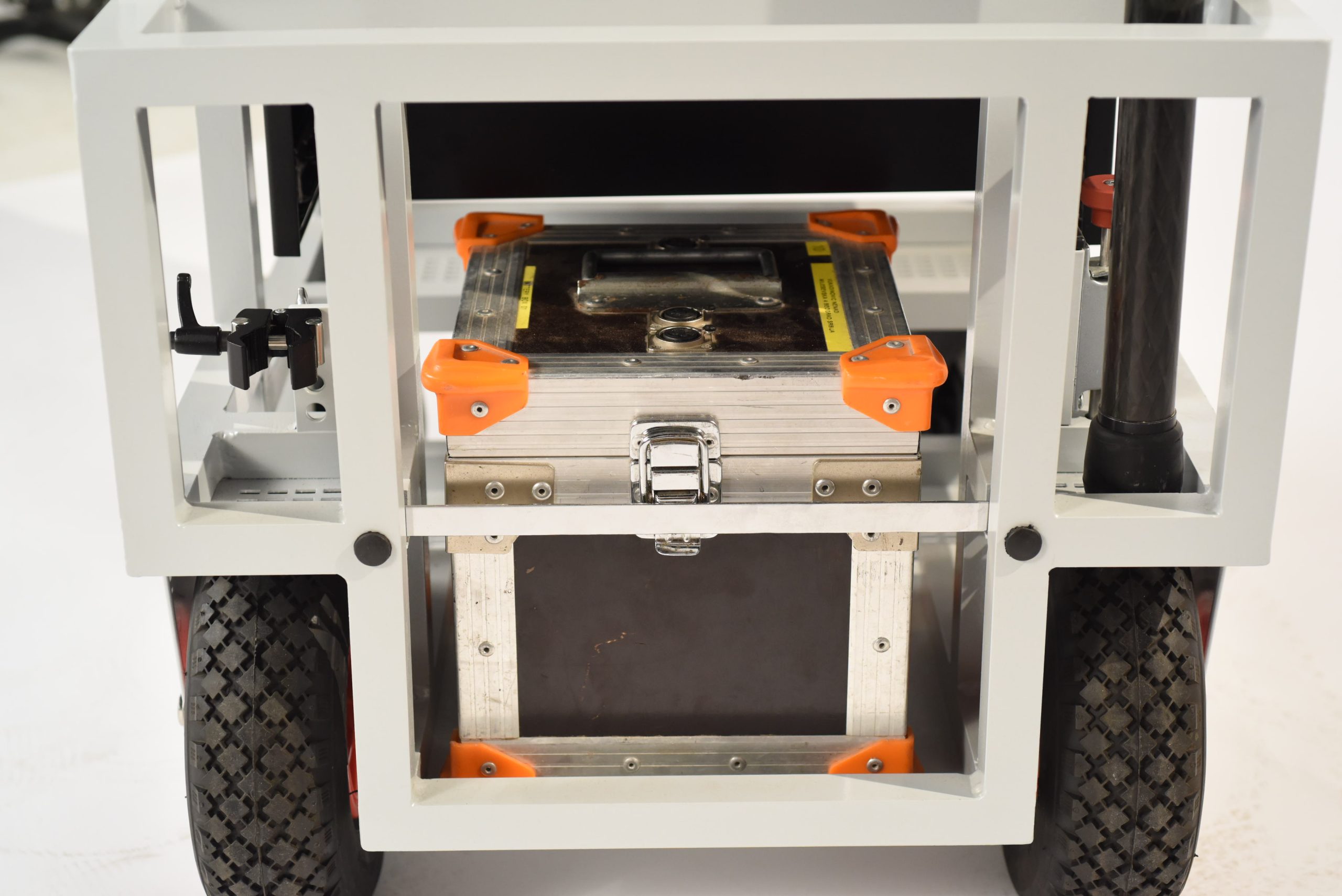

Smart Sound Cart provides MODULAR, two-piece set that allows you to detach Audio Box from Smart Sound Cart and carry it, with more comfort and half the weight. This is particularly important when there is no elevator and one has to carry the gear several floors by hand. Audio Box has two Protex handles so you can have a good grip while you carry your Audio Box.MOBILITY - Smart Sound Cart is ideal for safe moving over rough surfaces

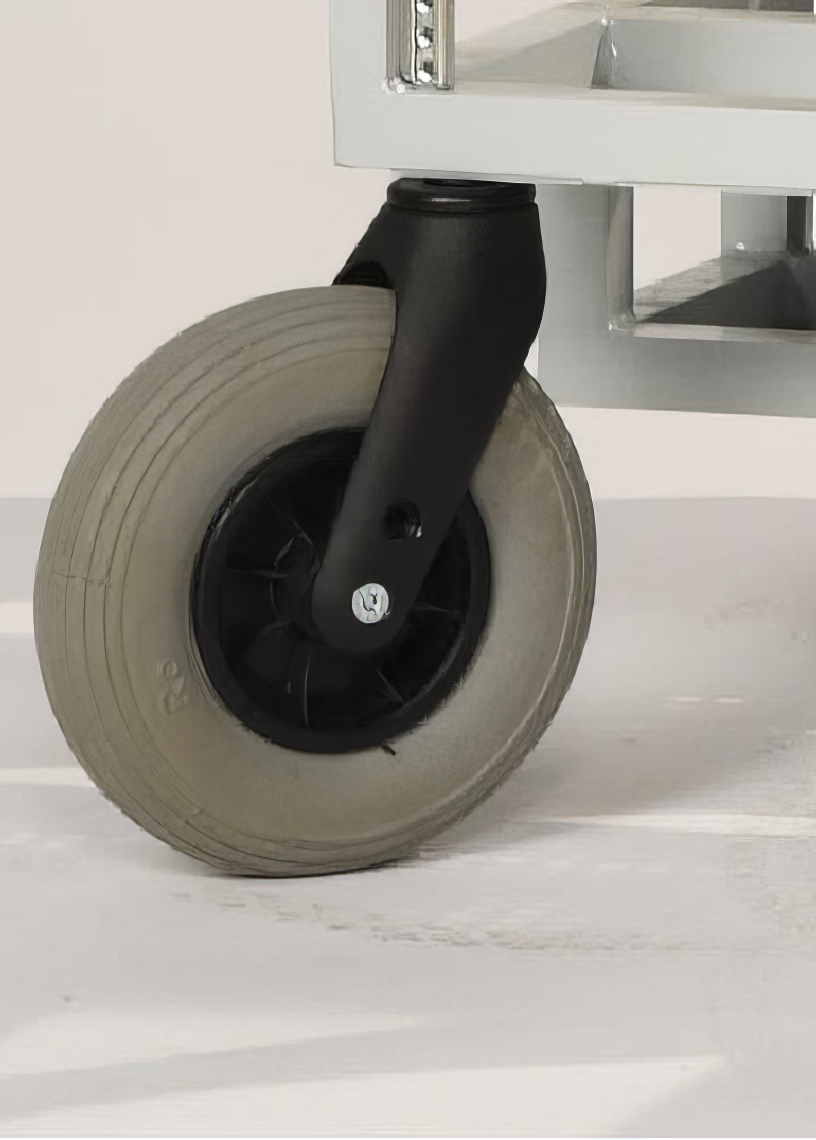

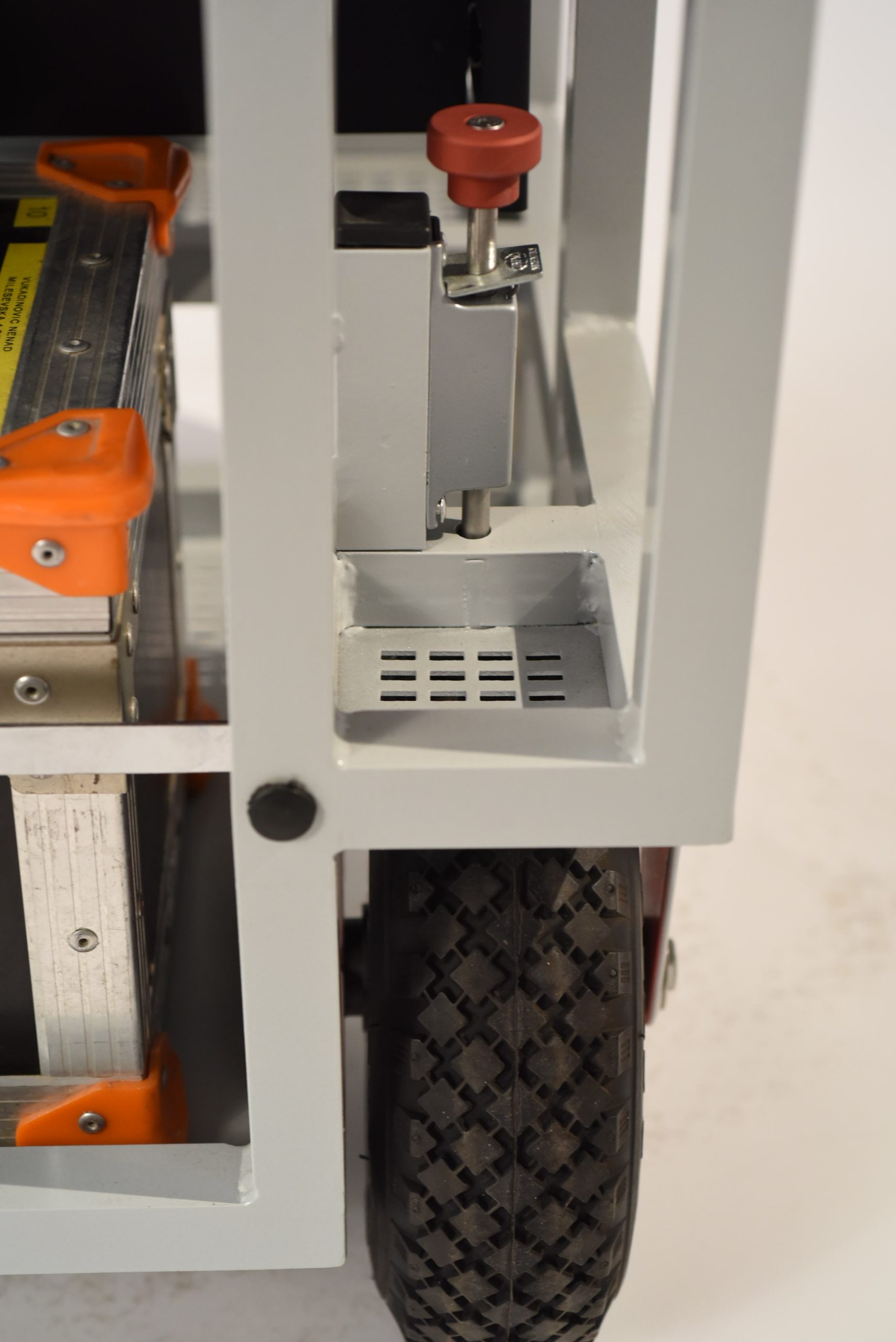

Sound Smart Cart is built from plasticized aluminum profiles and stainless steel components with two optional sizes of front wheels: Small Ø 100mm wheels or big Ø 200mm wheels with pneumatic tires. Standard size for rear wheels is Ø 260mm. 100 mm front wheels provide more space in front to put bigger 19” drawer (Adam Hall recommended). 200 mm wheels provide better mobility on rough terrains and easier and faster moving on the set and more absorption of vibrations that can be carried onto equipment on the location sound cart.DURABILITY - lightweight, rust-free and stylish support for your audio equipment
Our audio carts are built from Aluminum profiles which are welded so the frame is firm during moving around the set and rough terrains. Aluminum is chosen due to its lightweight and rust-free characteristics. Furthermore, rugged construction frame is plastic coated, so there are no rough edges and color marks from Aluminum which gives Smart Sound Cart a stylish look.PROTECTION - keeps you safe in different weather conditions
Audio Box provides safe splash-proof environment for your sound equipment. In case of rain, you will have enough time to place your umbrella in a place provided on Smart Sound Cart. Your sound equipment is always safe with us!STORAGE - great for storing additional accessories including microphone cables

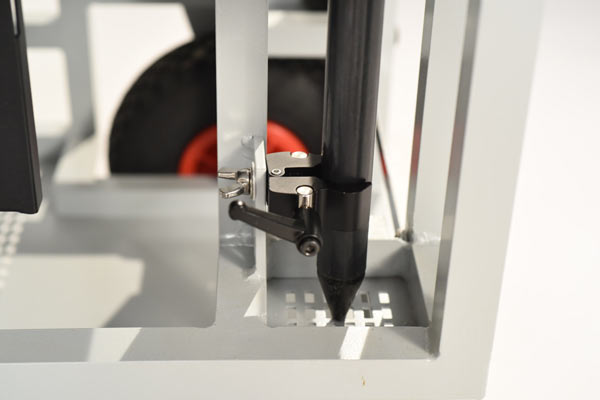

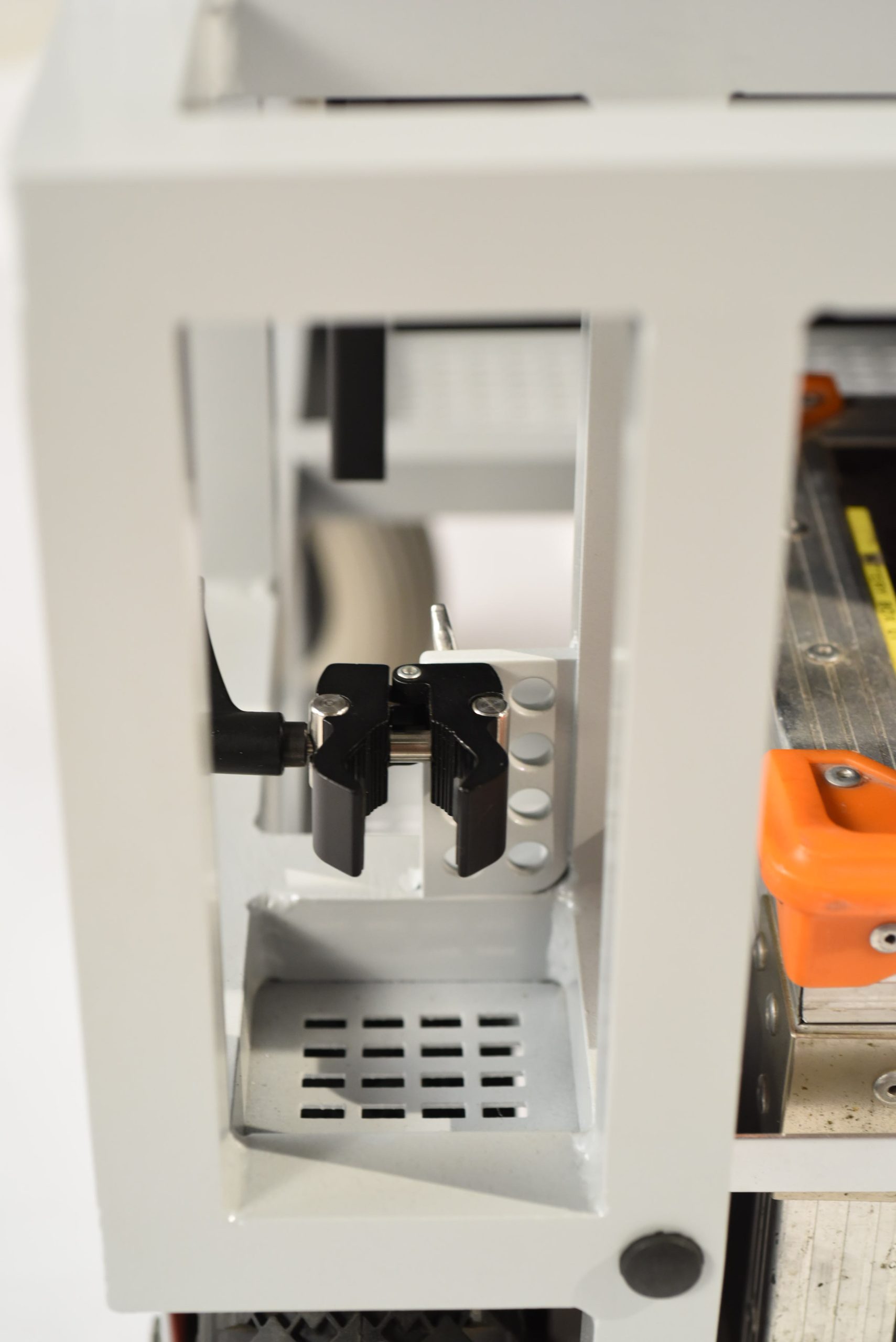

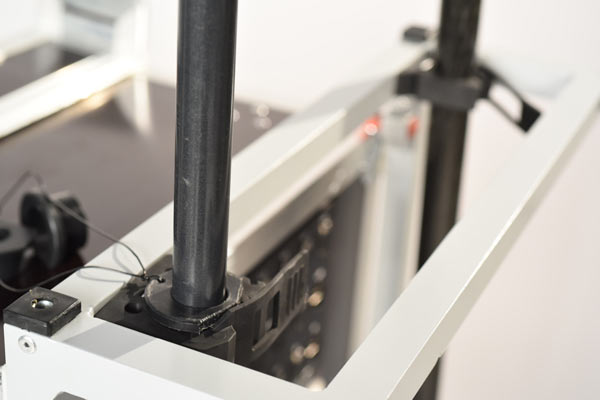

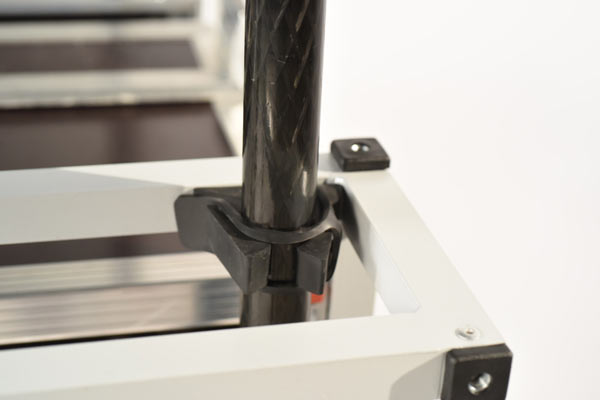

Smart Sound Cart has a place to hold boom poles, RX/TX mast, umbrella and hooks. This audio cart is equipped with 2 holders (for boom poles, antenna pole or umbrella) with 3 custom made adapters (Ø21mm, Ø26mm and Ø31mm). For placing optional clamp for fixing umbrella there is plate that is dedicated for installing mounting clamp (we recommend Nano clamp 386B by Manfrotto). Also on the trolley handle there are tree hooks for placing your microphone cables.19” STANDARD AND STORAGE OPTION

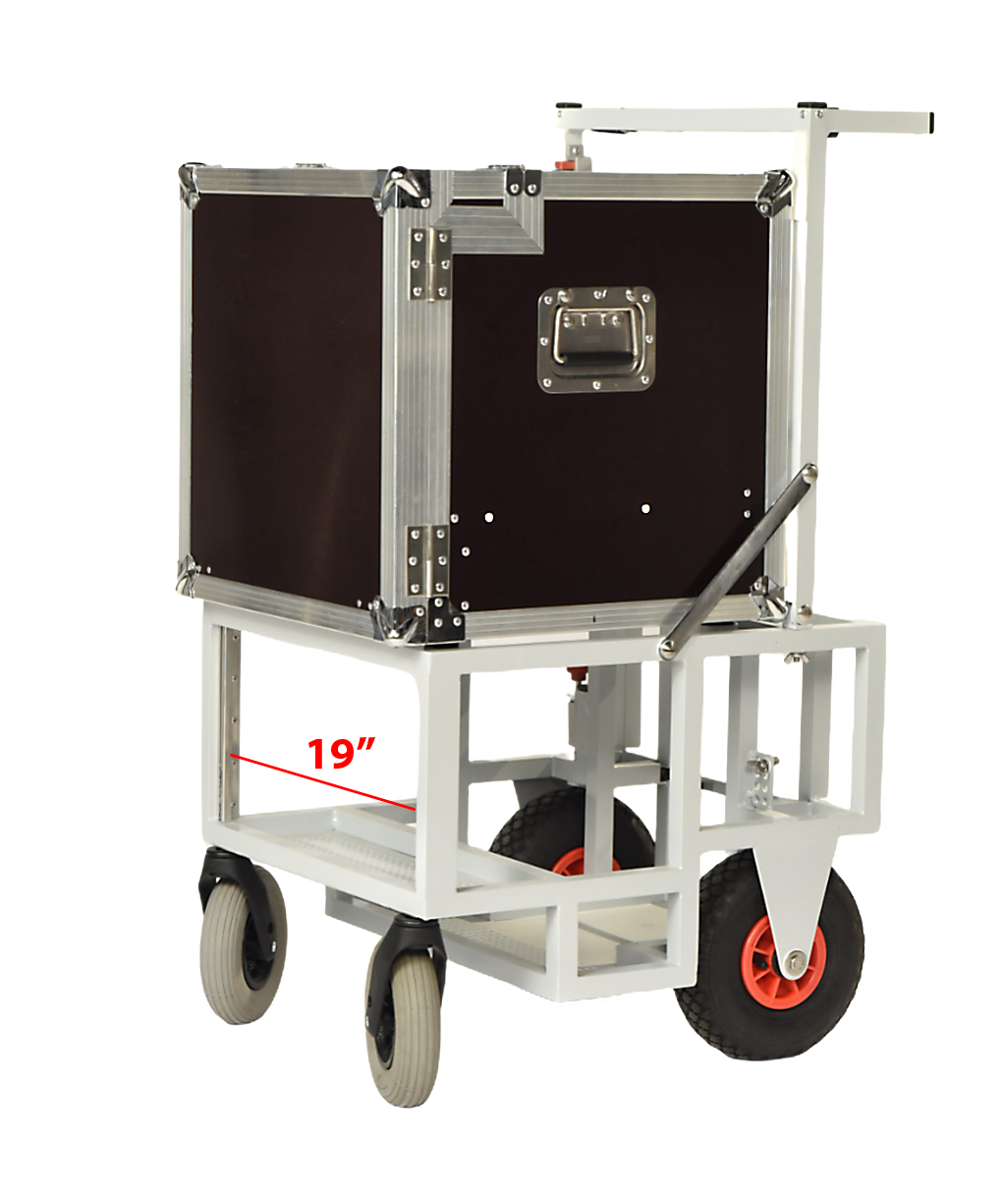

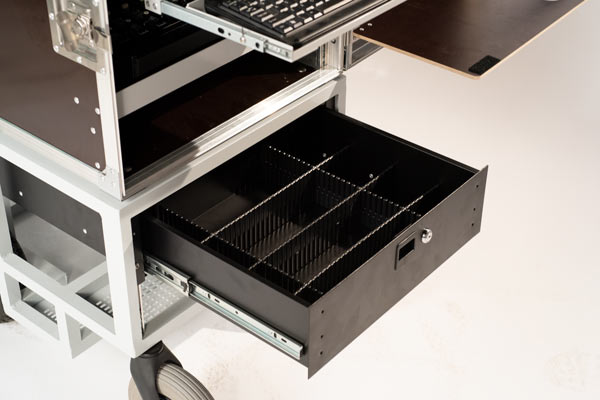

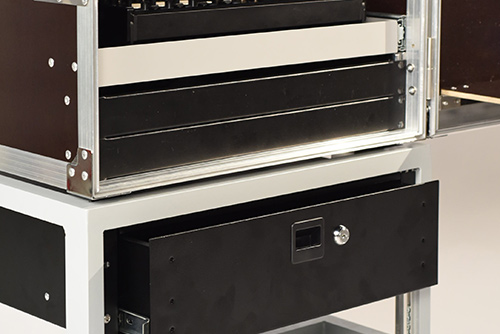

Smart Sound Cart offers you to add 19" drawer (ADAM HALL in picture) where you can store all small things you need on the set. Audio Box (Flight Case) is built in a 19" rack standard from Aluminum and waterproof plywood with Protex Stainless Steel locks and hinges. It can be customized for different sound recorders and mixing consoles – control surfaces. Audio Box has a fully removable door. Also there is a shelf that can accommodate small or medium size keyboard. Optional keyboard shelf can be replaced with tablet holder. Under the mixing consoles – control surfaces, the shelf is 19” 2U space ready to accommodate drawer or anything else that is 19” 1U or 2U size. 19” WIRELESS 2U AND 4U MONITOR 6U L&R RACK MOUNT STYLE ADDON Additional place on top of the trolley handle to accommodate wireless receivers and monitors up to and including 8” W=19” x H=6U x D=220mm (8.66")AUDIO BOX - CUSTOMIZE YOUR SOUND RECORDING EXPERIENCE
SPACE for AUDIO EQUIPMENT

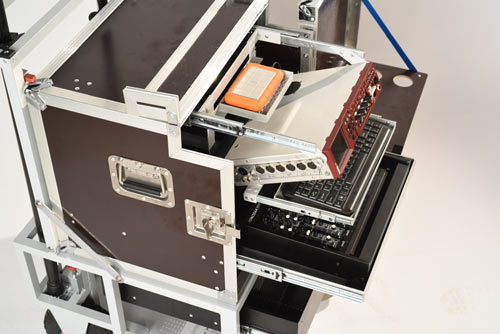

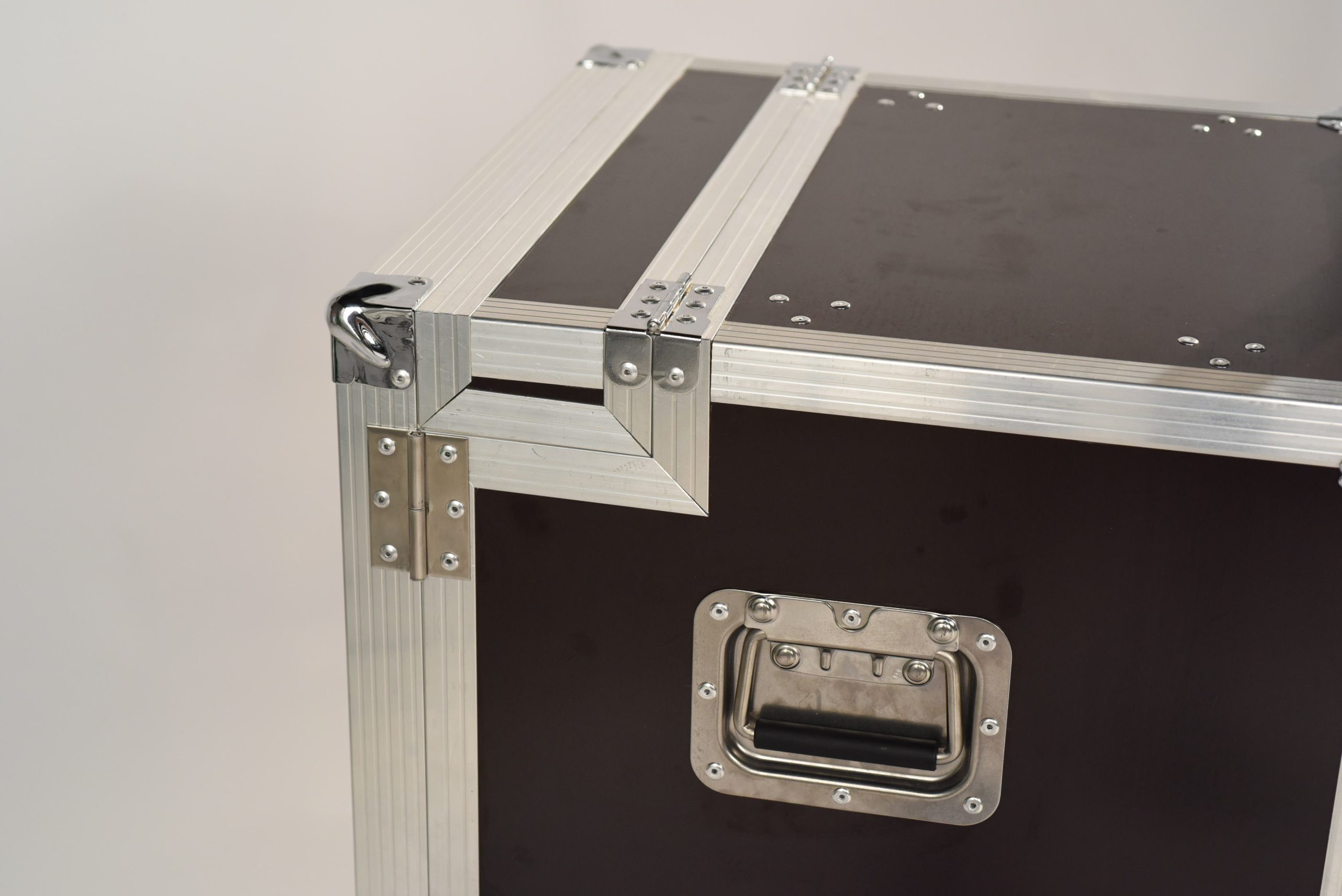

Audio Box (Flight Case) is built in a 19" rack standard from Aluminum and waterproof plywood with Protex Stainless Steel locks and hinges.It can be used for perfect location sound recording and customized for different sound recorders from any of following manufacturers: Aaton Cantar, Nagra, Sonosax, Zaxcom, Sound Devices and mixing consoles – control surfaces that fit 19” standard. Audio Box has a fully removable door with foldable shelf for script, two holes to place plastic bottles or cups and a hook for your headphones. Also there is a shelf that can accommodate small or medium size keyboard. Optional keyboard shelf can be replaced with tablet holder. Under the mixing consoles – control surfaces railed shelf is 19” 2U space ready to accommodate drawer or anything else 19” 1U or 2U size. (e.g. wireless receivers rack mount style)
POWERING AND CABLING

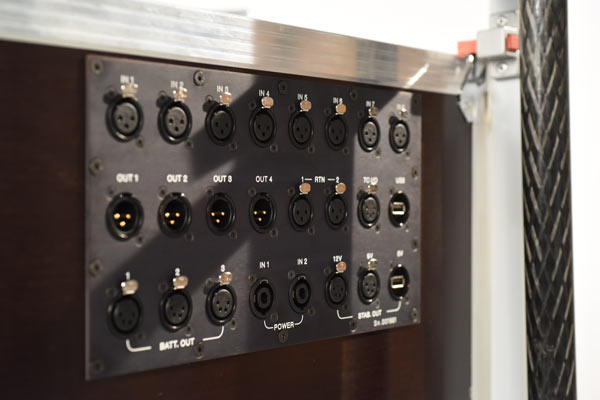

Audio Box is equipped with PATCH FIELD that has:- 8 XLR3F connectors for inputs
- 4 XLR3M connectors for outputs
- 2 return channels via XLR3F connectors
- TC in/out via XLR5F connector
- USB or firewire 1394 DATA CONNECTOR
- 3 additional main battery outputs 4 pin XLR F style (parallel connection with main power supply)
- stabilized 12V(1A)XLR, 9V(1A)XLR and 5V(3A)USB
INSIDE OF AUDIO BOX
- 3 additional main battery outputs 4 pin XLR F style
- 1 dual USB power plug (3A max) for powering tablet, smartphone etc.
CABLING
Main power connection with battery is provided over NL4MD-H-1 (speakON) connectors. All connectors are Neutrik - gold plated series. All audio cabling inside Audio Box is done with Canare audio cables.Back side of the box has brush protected rectangle opening that allows you to connect additional devices directly to your mixer or sound recorder.
In Audio Box there is a connector for internal lighting (XLR3 pin, XLR4 pin or BNC), ready to take 12” Gooseneck lamps (J&R e-RAY 12 or LITTLITE 12 G-led 12” GOOSENECK).
Customs solutions of audio carts are also available – shelves, lay-out, their order. Furthermore, connections for the equipment can be also custom made.
Audio Box (Flight Case) is built in a 19" rack standard from Aluminum and waterproof plywood with Protex Stainless Steel locks and hinges. It can be customized for different sound recorders and mixing consoles – control surfaces. Audio Box has a fully removable door. Also there is a shelf that can accommodate small or medium size keyboard. Optional keyboard shelf can be replaced with tablet holder. Under the mixing consoles – control surfaces shelf is 19” 2U space ready to accommodate drawer or anything else that is 19” 1U or 2U size.
Audio Box is equipped with
patch field
that has
8 XLR3F connectors for inputs, 4 XLR3M connectors for outputs, 2 return channels via XLR3F connectors, TC in/out via XLR5F connector, USB connector, 3 additional Battery outputs (parallel connection with main power supply) and stabilized 12V(1A)XLR, 9V(1A)XLR and 5V(2A)USB. Main power connection with battery is provided over NL4MD-H-1 (speakON) connectors. All connectors are Neutrik - gold plated series. All audio cabling inside Audio Box is done with Canare audio cables.
Back side of the box has brush protected rectangle opening that allows you to connect additional devices directly to your mixer or sound recorder.
8 XLR3F connectors for inputs, 4 XLR3M connectors for outputs, 2 return channels via XLR3F connectors, TC in/out via XLR5F connector, USB connector, 3 additional Battery outputs (parallel connection with main power supply) and stabilized 12V(1A)XLR, 9V(1A)XLR and 5V(2A)USB. Main power connection with battery is provided over NL4MD-H-1 (speakON) connectors. All connectors are Neutrik - gold plated series. All audio cabling inside Audio Box is done with Canare audio cables.
Back side of the box has brush protected rectangle opening that allows you to connect additional devices directly to your mixer or sound recorder.
TRANSPORT YOUR AUDIO EQUIPMENT SAFELY FROM ONE PLACE TO ANOTHER
Smart Sound Cart is a safe and easy way to transport your audio equipment and it keeps it secure and protected. All you have to do is to put your sound equipment on wheels and transport it conveniently from one place to another.

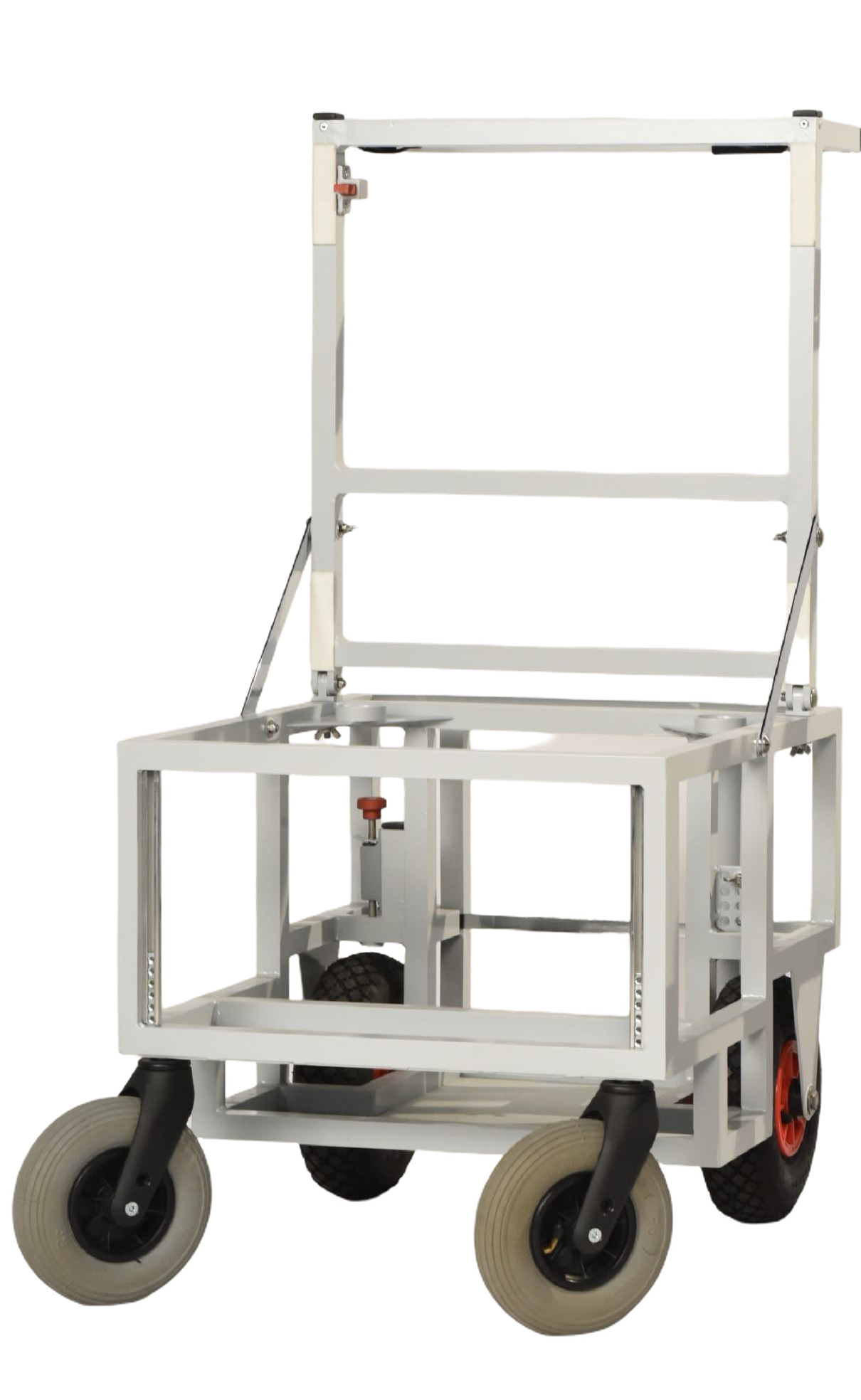

Smart Sound Cart (sound trolley) can also be disassembled for easier transportation, storage or for use in cars.
Assembled SSC
Fully assembled Sound Smart Cart size:
Weight of Sound Smart Cart is only 14kg.
W=54,5cm | D=61,5cm | H=110cm
W=21.45 inches | D=24.21 inches | H=43.30 inches

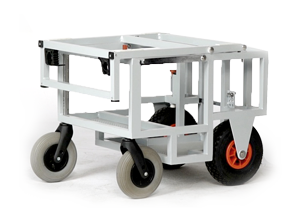

Folded SSC
Smart Sound Cart can be disassembled for easier transportation.
Dimensions of folded Sound Smart Cart:
W=54,5cm | D=74cm | H=54cm
W=21.45 inches | D=29.13 inches | H=21.25 inches
Height from the bottom of the audio mixer (control shelf) mounted on fully retractable rails, to the ground is 63cm (24.80 inches). This leaves enough space to put your legs underneath for more comfort while working on the set.
